After the National Day holiday, the temperature drop came ‘too steep’. We pay attention to dress warmly at the same time, do not forget to put the winter home heating plan on the agenda!

When it comes to comfortable heating, floor heating is definitely indispensable. But the Internet search floor heating installation, a variety of difficult to spit on the face, so that newcomers to the decoration daunting.

It takes half a day to heat up when you turn it off and on again! Don't even think about turning it off for a winter!

       The ceiling height was already tight, but with underfloor heating, it's even shorter!

I only want to install underfloor heating in the bedroom, but they said the area is too small to install!

       I don't have gas in my rural house, can anyone tell me if I can install it?

I'm worried that the old house floor leakage, poor load bearing, this floor heating I can lay at ease?

       After installing underfloor heating, you still need to clean and maintain it? I don't even maintain it as diligently as I do!

In fact, in order to solve the above problems, you only need to choose a good electric underfloor heating can be easily solved which means electric underfloor heating is a heating method that converts clean energy ‘electricity’ into heat. At present, the most mature and widely used is the heating cable electric underfloor heating.

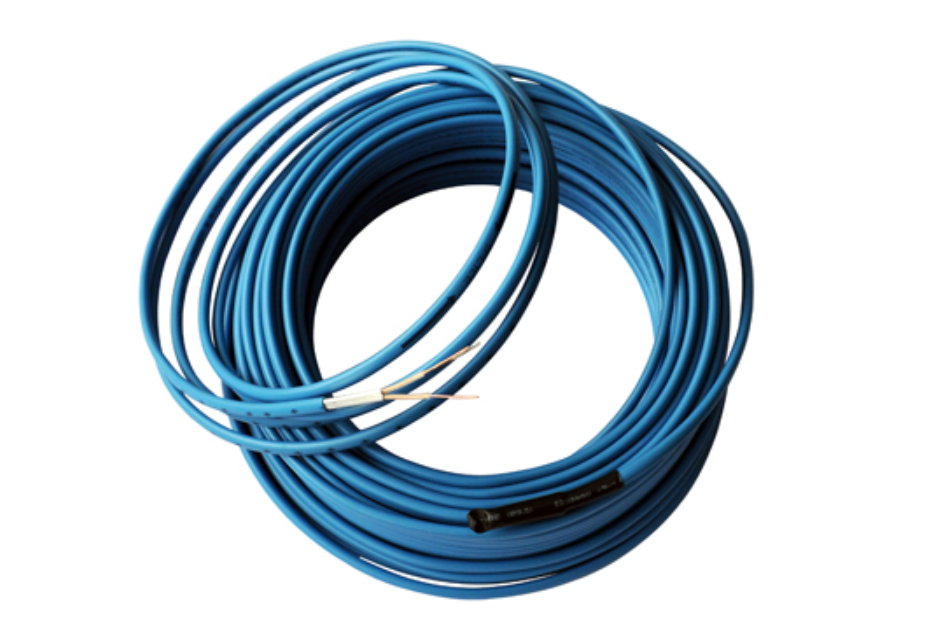

A roll of heating cable

However, if you want to perfectly solve the problem of instant heating, save floor height, reduce load-bearing, easy to install and so on, it is very important to choose what way to fix the cable on the ground.

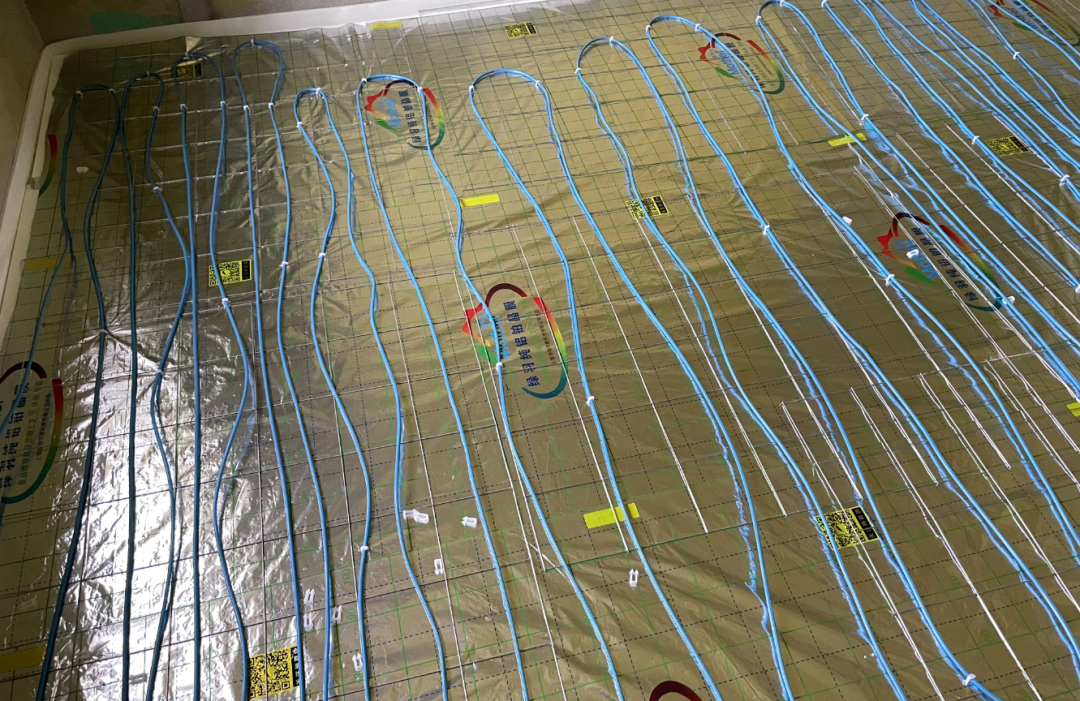

Some people are fixed like this:

Wet electric underfloor heating finished effect

This way to fix the heating cable in the insulation layer using clips, on the one hand, clips for the destruction of the insulation layer may reduce the insulation effect, on the other hand, the later backfill is not friendly to the floor height, and the construction of the worker's construction technology requirements.

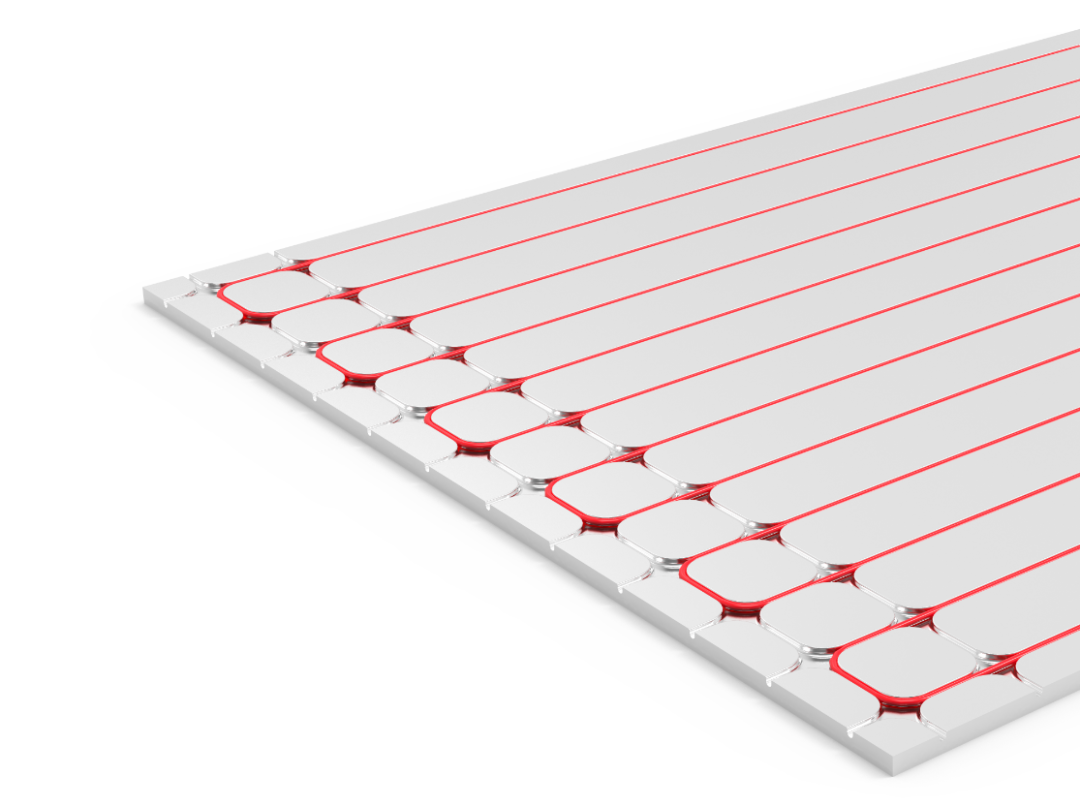

Then there are other fixing methods? Of course there are. If you see here, congratulations! You will get a brand new electric underfloor heating supporting auxiliary material, which is paired with the heating cable like this:

Drawn by the design, loyal to the quality. What exactly is the quality of this Earthmother Air-CN180?

Genuine material, excellent performance

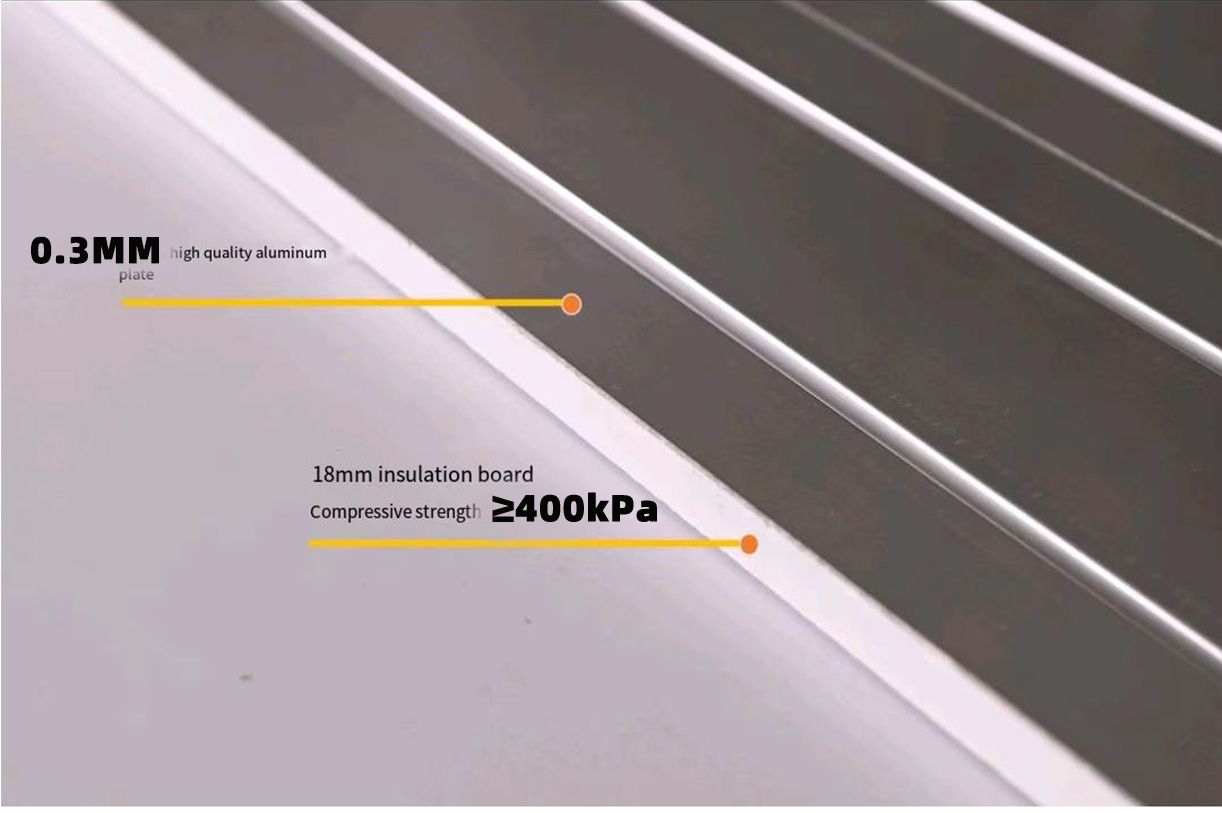

The base board adopts 18mm thermal insulation layer, compared with 12mm thickness, the thermal resistance is enhanced by 50%, more energy-saving. 100% brand new material production ensures environmental protection at the same time, compressive strength ≥ 400kpa, strong loading capacity, not easy to deform.

The surface layer is made of 0.3mm high quality aluminium plate, the thermal conductivity is up to 237W/(m-K), which is fast and even heat. At the same time with antioxidant coating, to avoid corrosion and oxidation of the aluminium layer into aluminium oxide, resulting in a reduction in thermal conductivity, affecting the effect of heat diffusion.

Save floor height and free up space

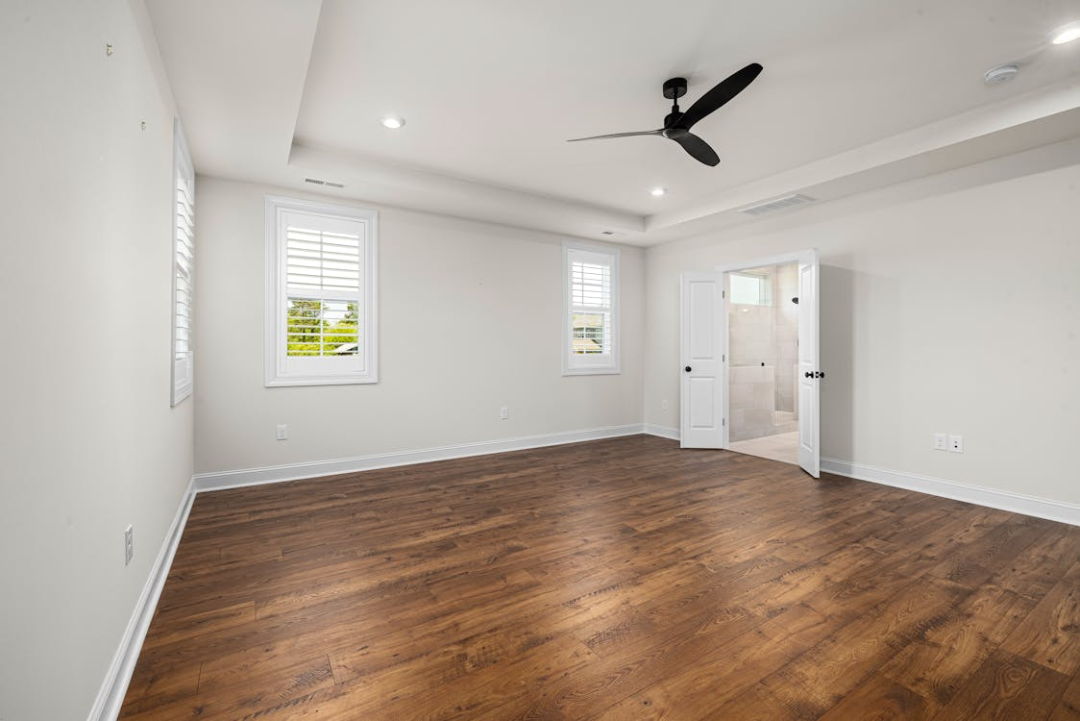

Imagine, originally spacious and bright room, because the installation of underfloor heating makes the space become depressing, shelves who prefer not to. Even 1cm of floor height should not be wasted!

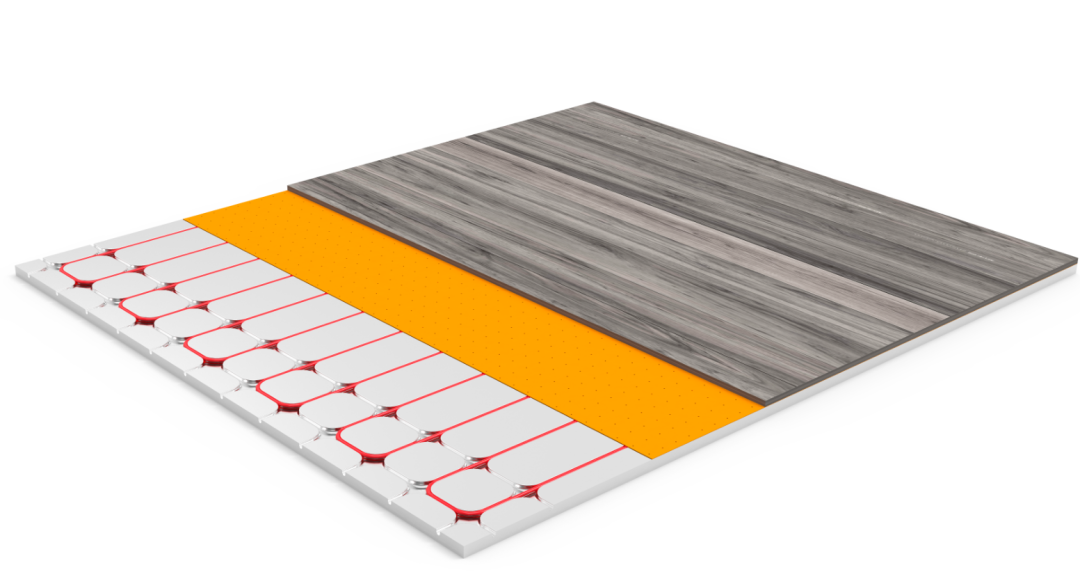

The total thickness of Air-CN180 is only 18mm, and no backfill is required, so the floor can be laid directly. In the case of the original ground flatness meets the requirements, after the completion of the layer height only occupied about 2.8CM, saving 7-8cm than the traditional wet method, very suitable for the old room remodelling or insufficient layer height of the family.

Fast response, energy saving

For the traditional wet floor heating 6-7 hours of warming time, winter is too cold to close frequently. It's such a waste for working people who are not at home during the day!

And the use of Air-CN180 dry electric floor heating is opened without heating the backfill layer, the surface of the high-quality aluminium layer can be quickly warmed up, 20-30 minutes to enhance the indoor temperature, can be turned off when no one in the house. It can avoid the waste of energy caused by the traditional underfloor heating, and also reduce the cost of underfloor heating.

Highly efficient even heat for comfort

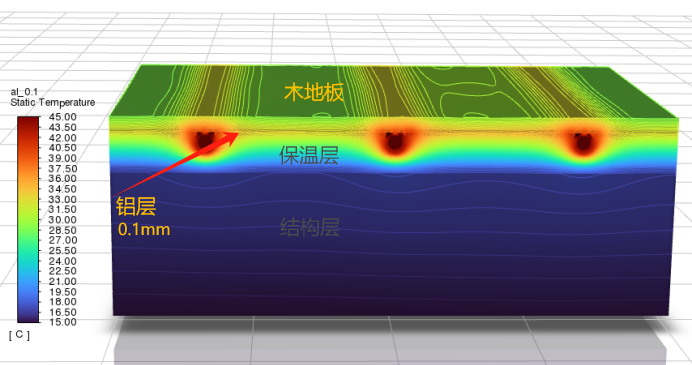

Generally marketed 0.1mm embossed aluminium panels has no aluminium layer at the turning surface, the heat effect is not good. If the heating cables directly contact with the insulation layer, heat cannot be dissipated in a timely way, which may create a safety problem.

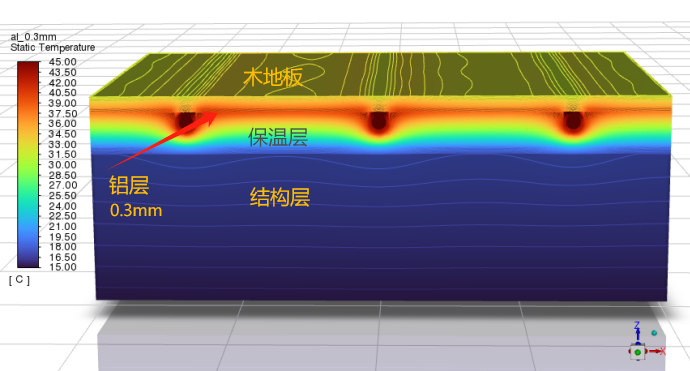

The Air-CN180 uses 0.3mm high-quality aluminium layer for better heat diffusion, and at the same time, it has been wrapped with full aluminium layer, which increases the area of aluminium layer by 20%, and has a better effect of even heat diffusion. When the underfloor heating is turned on, the temperature difference on the surface of the ground is small, and the comfort is higher.

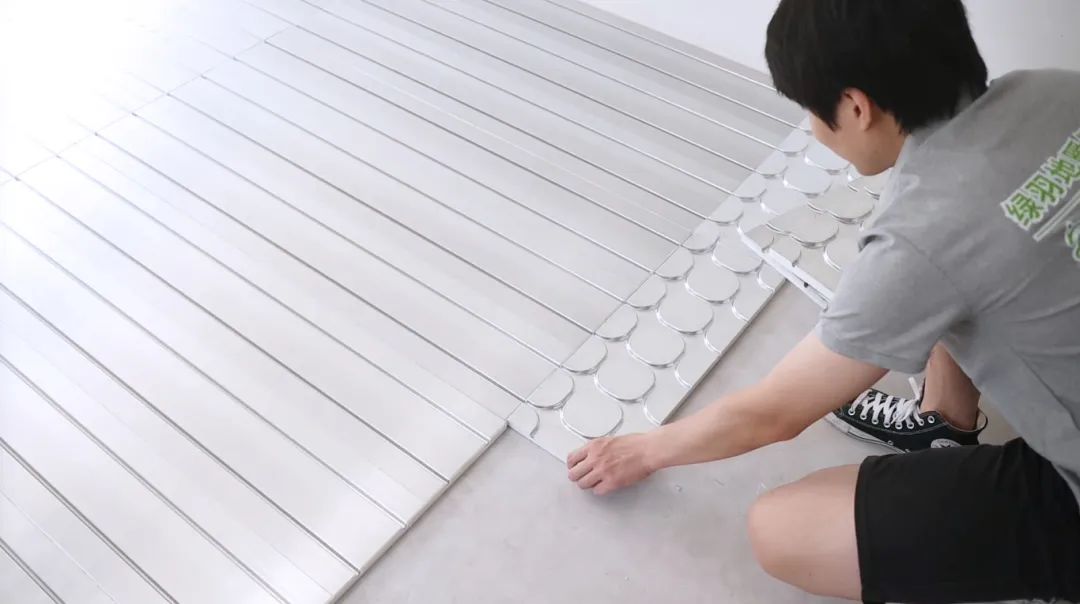

Free and flexible cable installation

This product is designed with flexible universal head for easy wiring. Customers can DIY according to their heating needs to achieve the laying of single room or individual zone heating.

At the same time, the laying of dry light aluminium sheet has a small overall load-bearing burden and is suitable for laying underfloor heating in many situations, so you don't need to worry about it even if you are renovating an old house.

How to lay? We also provide you with a standard construction process reference~~
